YC-3 Hydraulic impact hammer
Yongan hydraulic impact hammer has 14 models from YC-3 to YC-80, impact energy vary from 24 KNm to 1360 KNm. It is widely applicable for most types of piling and foundation works. Various pipe material, size and shape such as concrete pipe, steel sheet pile, H beam, casing pile and shapes like round, etc. Hydraulic impact hammer can be used for fixed leader or crane suspended, the mounting type can be customized according to customer’s base machine. Our machine can also be used to extract piles or modified with adoptable accessories to do rapid impacting work.
YC-3 Hydraulic Impact Hammer is a popular pile driver in construction of prefabricating casing pile foundation, large-scale sea-crossing concrete pile bridge and ferry pier, applicable in onshore and offshore pile driving conditions, and also suitable for pile driving under water (above 5m) condition.
Technical Data
| Hammer YC-3 | |
| Impact energy(KNm) | 24 |
| Working stroke(mm) | 800 |
| Impact frequency(bpm) | 50/100 |
| Ram Weight(Kg) | 3000 |
| Lifting methord | Single hydraulic cylinder lifting |
| Length (mm) | 4020 |
| Width (mm) | 900 |
| Height (mm） | 1060 |
| Weight（kg） | 5800 |
| Pile cap | |
| L*W*H (mm) | 895*895*745 |
| Weight（kg） | 1100 |
| Power pack 120P | |
| Engine power(P) | 120 |
| Engine model | Cummins C120 |
| System pressure(Mpa) | 20 |
| Work flow(L) | 140 |
| The volume of the liquid oil (L) | 400 |
| Fuel tank capacity(L) | 260 |
| L*W*H (mm) | 2800*1450*1950 |
| Weight（kg） | 3000 |

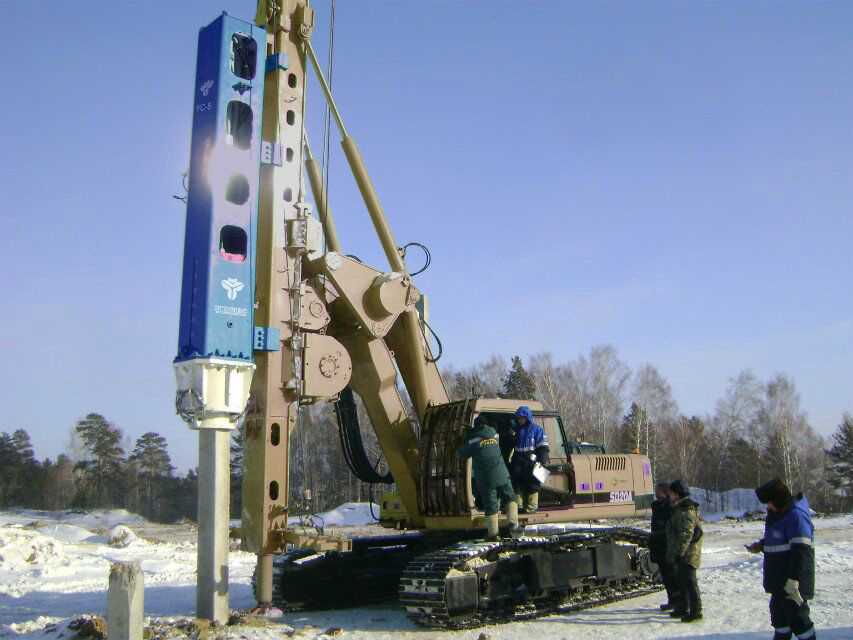

Project photos
